Iris PE (Phoenix Edition) Case/Plates

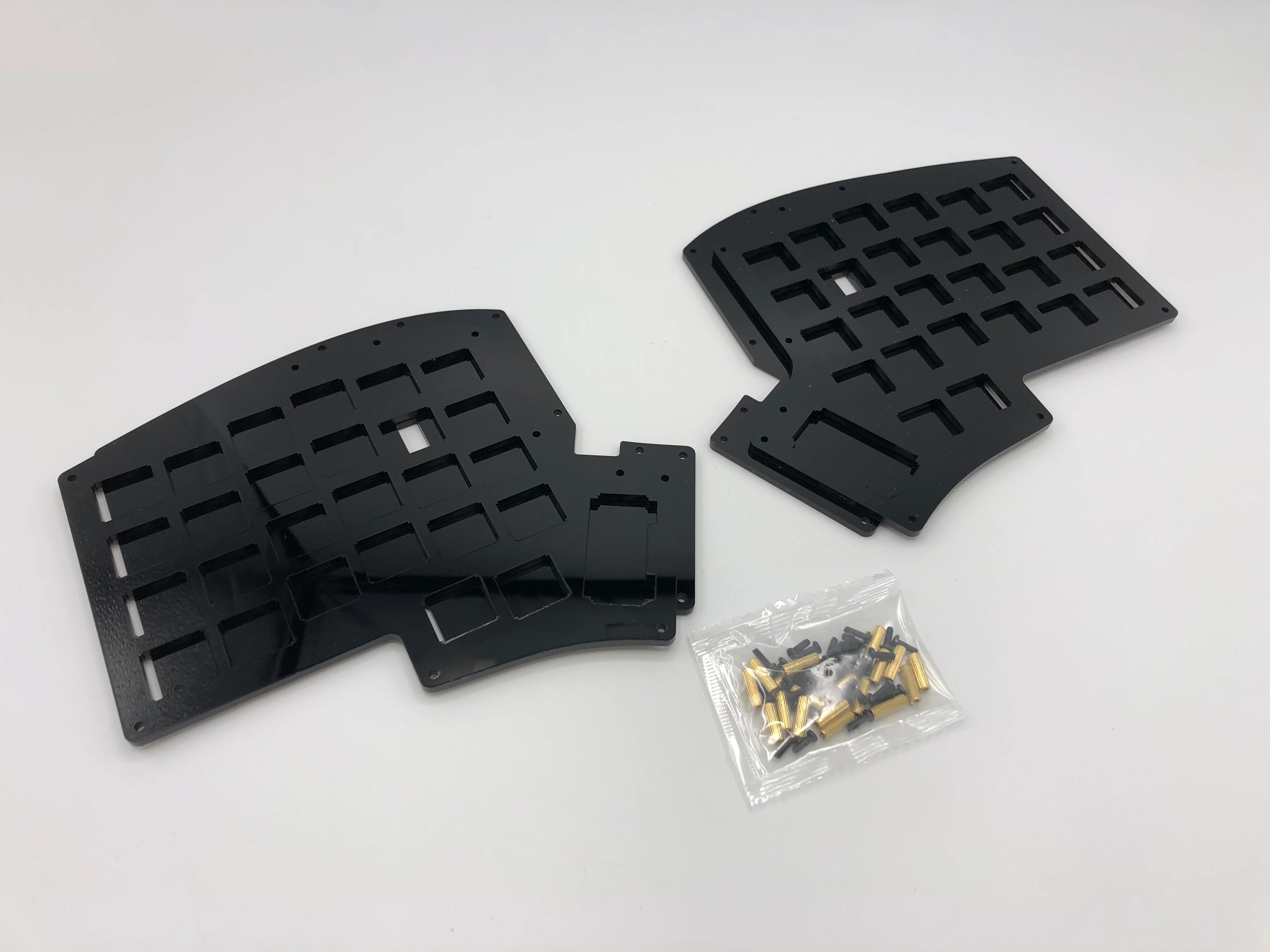

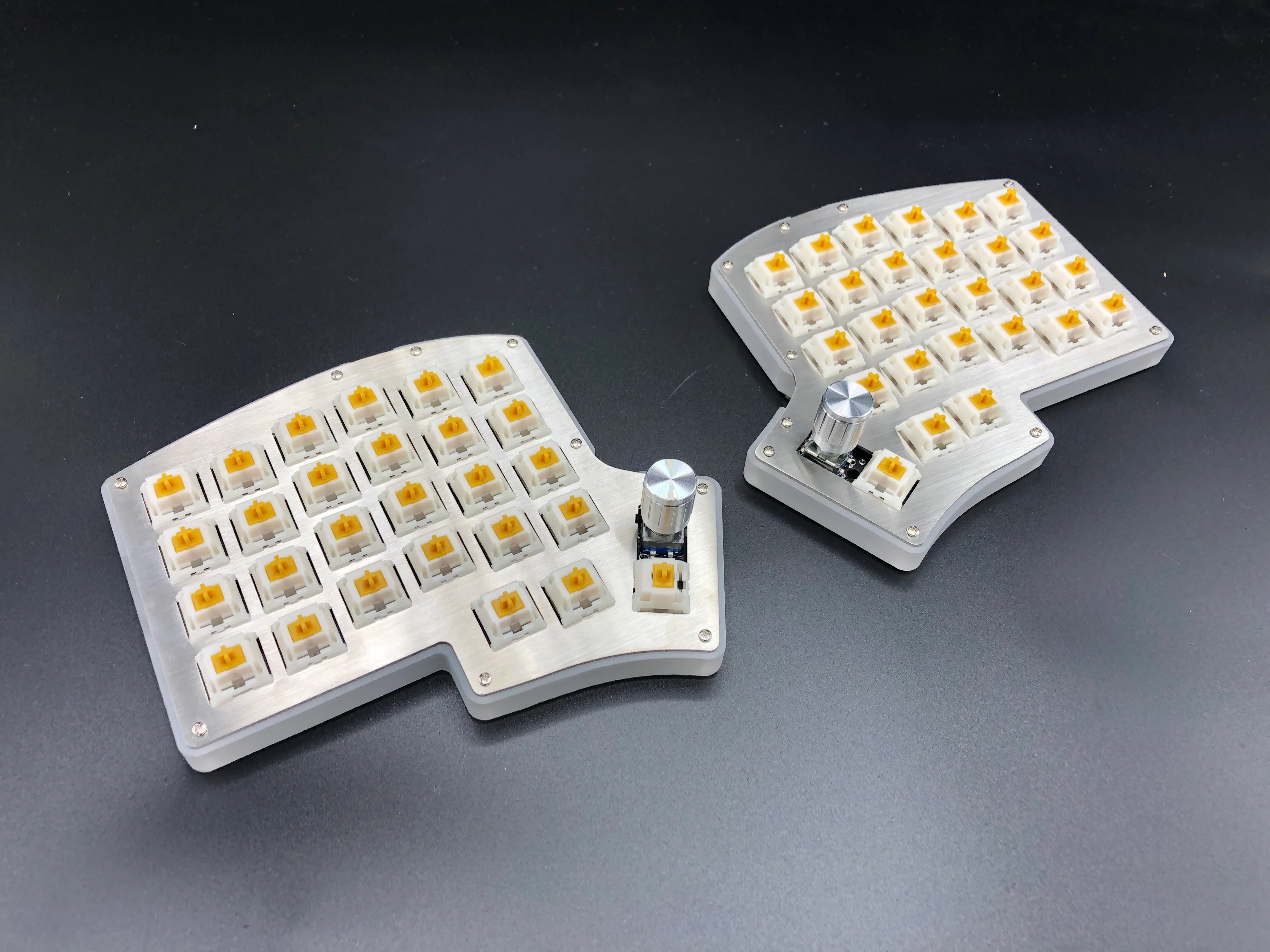

Case parts for the Iris keyboard. The cases consists of two sets of parts, top/bottom plates and middle layers. The middle layers are optional and can be added in between the top and bottom plates at any time.
Discontinuation Note: Iris PE case parts are discontinued now in favor of the Iris SE parts. See Aluminum case or 3D-printed case.
PCBs not included.
Middle layers

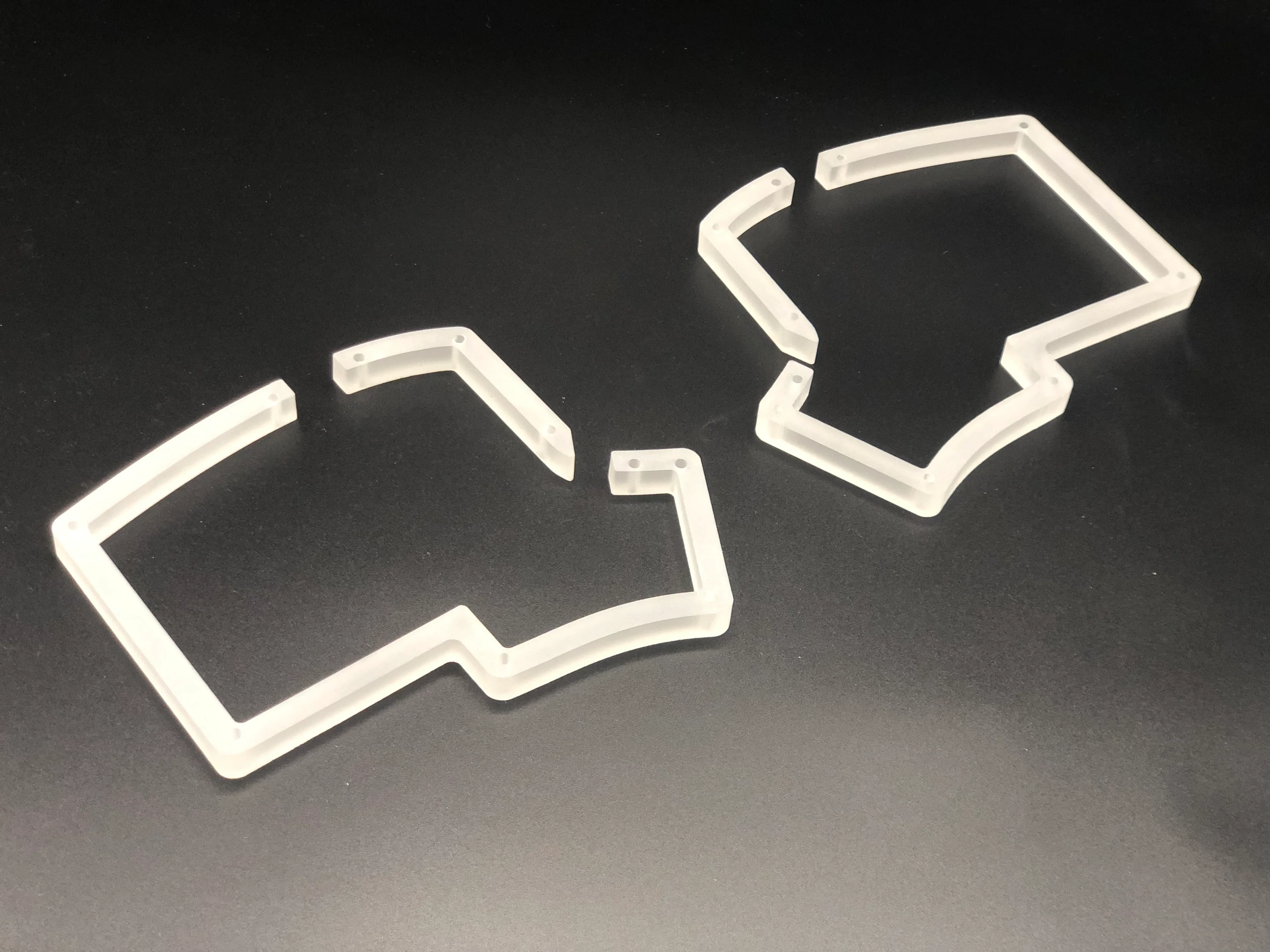

This 10mm thick middle layer is used to encase the area between the top and bottom plates. Most pieces actually measure between 9.4-9.8mm, so 9mm standoffs have been included to prevent the mid pieces from rattling. Replace the 10mm standoffs that comes with the FR4 or Stainless Steel plate kits with the 9mm ones. 9mm standoffs are already included with acrylic plates. Compatible with the stainless steel, aluminum, or acrylic plates, and the design posted on GitHub.
Tenting

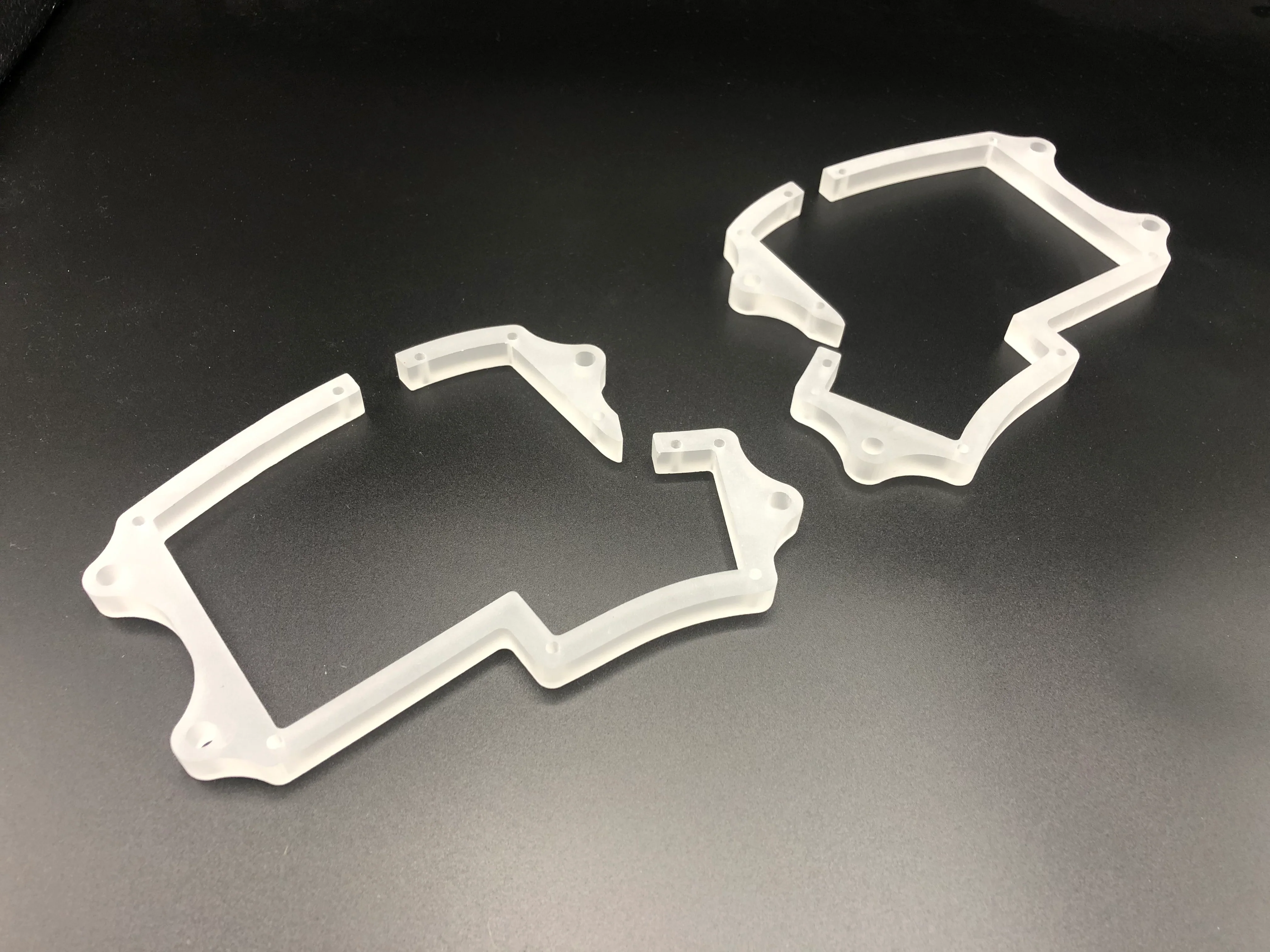

For the tented middle layer, you can use M6 or 1/4" carriage bolts and nuts to tent the board. These are not included with the middle layer, since every person's needs for the degree of tenting varies. You can get these bolts and nuts at a hardware store. See installation video below:
Original: $5.99
-65%$5.99
$2.10
Description
Case parts for the Iris keyboard. The cases consists of two sets of parts, top/bottom plates and middle layers. The middle layers are optional and can be added in between the top and bottom plates at any time.
Discontinuation Note: Iris PE case parts are discontinued now in favor of the Iris SE parts. See Aluminum case or 3D-printed case.
PCBs not included.
Middle layers
This 10mm thick middle layer is used to encase the area between the top and bottom plates. Most pieces actually measure between 9.4-9.8mm, so 9mm standoffs have been included to prevent the mid pieces from rattling. Replace the 10mm standoffs that comes with the FR4 or Stainless Steel plate kits with the 9mm ones. 9mm standoffs are already included with acrylic plates. Compatible with the stainless steel, aluminum, or acrylic plates, and the design posted on GitHub.
Tenting
For the tented middle layer, you can use M6 or 1/4" carriage bolts and nuts to tent the board. These are not included with the middle layer, since every person's needs for the degree of tenting varies. You can get these bolts and nuts at a hardware store. See installation video below:
